CONDENSATE RETURN · BOILER FEED
Heating pumps
PRODUCTS IN THIS FAMILY
2 PRODUCTS
RECEIVERS
6 – 400 gal
CONFIGURATION
Simplex · Duplex
PUMPS
⅓ – 7½ HP
CONDENSATE
to 212°F
Key benefits
- Cast-iron receivers standard; steel and stainless available for aggressive condensate.
- Float switch (condensate) or level control with make-up valve (boiler feed), factory wired and tested.
- Vertical or horizontal pump mounting; mechanical or packed seals.
- Duplex units alternate automatically with lag pump on high level.
- NEMA 1 or 4 control panels with HOA switches and pump-run lights.
- Every unit hydrostatically tested and run-tested before shipment.
Returns condensate from steam heating systems and feeds boilers on demand — schools, hospitals, campuses, laundries and light process.
Size a unit
Tell us system EDR or boiler horsepower and we'll size the receiver and pumps.
Request a sizing Request a quote Find a rep for pricing →
Condensate & boiler feed units
| MODEL | SERVICE | CONFIGURATION | CAPACITY | DISCHARGE | RECEIVER |
|---|---|---|---|---|---|
| A5 · A7 · A9 | Condensate return | Simplex · duplex | 2 – 150 GPM | 10 – 50 psi @ 1750 · to 70 psi @ 3450 | Steel 10 – 100 gal · CI 15 – 110 gal |
| PM7 | Condensate pump & motor | Replacement on existing receiver | to 150 GPM | to 70 psi | — |

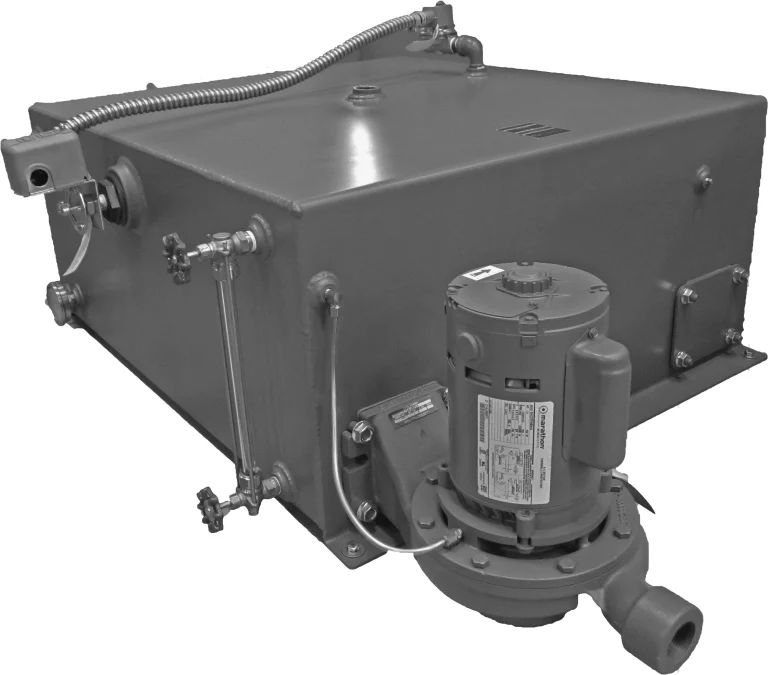

| B9 · AB9 | Boiler feed | Simplex · duplex | ~to 250 GPM | ~to 75 psi | ~Steel 50 – 500 gal |
| E11 · E14 | Boiler feed · double volute | Duplex · triplex | ~to 600 GPM | ~to 100 psi | ~Steel to 1,000 gal |
| F11 | Boiler feed · double suction | Triplex | ~to 1,000 GPM | ~to 125 psi | ~Custom |
| Pressure-powered | Condensate · non-electric | Simplex · duplex | ~to 20,000 lb/hr | Motive steam to 150 psig | Vented receiver |
